FTK series · Built to order
Split web guide frames
For webs wider than 750 mm, or for machines with no room for an all-in-one unit. The guide frame is built to your roller dimensions, and the controller mounts separately on the machine panel.
- Web width
- > 750 mm
- Frame
- Aluminium profile or square tube
- Control accuracy
- 0.1 mm
- Splice table
- Pneumatic, optional
Model code
Every frame is specified by its rollers
Model codes from frames we have built.
FTK500–533–76–01–Q
- FTKSplit web guide frame
- 500Roller face length, mm
- 533Outer span between rollers, mm
- 76Roller diameter, mm
- 01Mounting orientation (web path)
- QPneumatic splice table; blank = none
| Built examples | Roller length | Roller Ø | Frame |
|---|---|---|---|
| FTK380-S-376-75-01-Q | 380 mm | 75 mm | Profile, pneumatic splice table |
| FTK500-533-76-01-Q | 500 mm | 76 mm | Profile, pneumatic splice table |
| FTK825-500-75-01 | 825 mm | 75 mm | Aluminium profile |
| FTK1100-700-100-01 | 1100 mm | 100 mm | Square steel tube |
Built to order
From our assembly floor

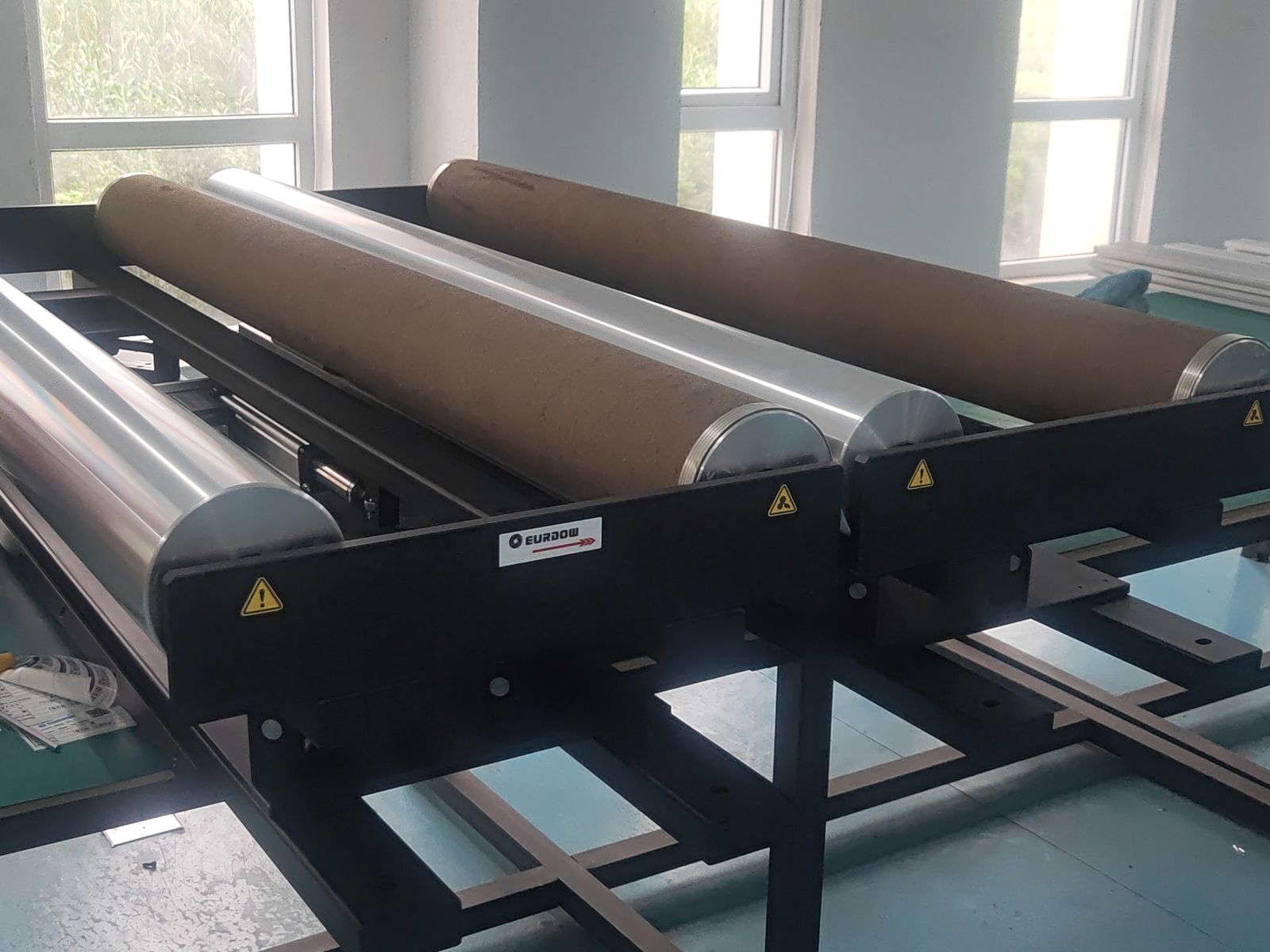

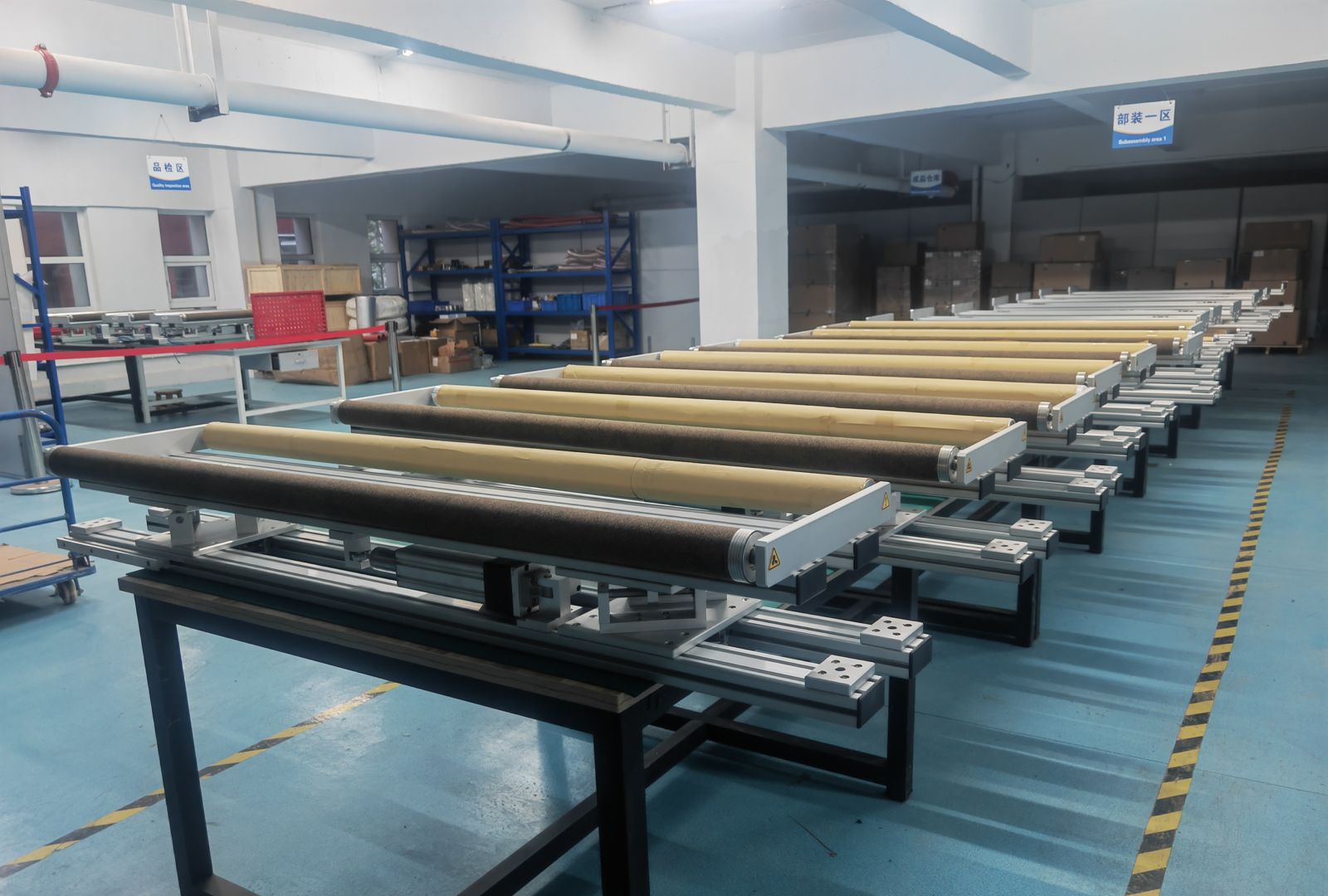

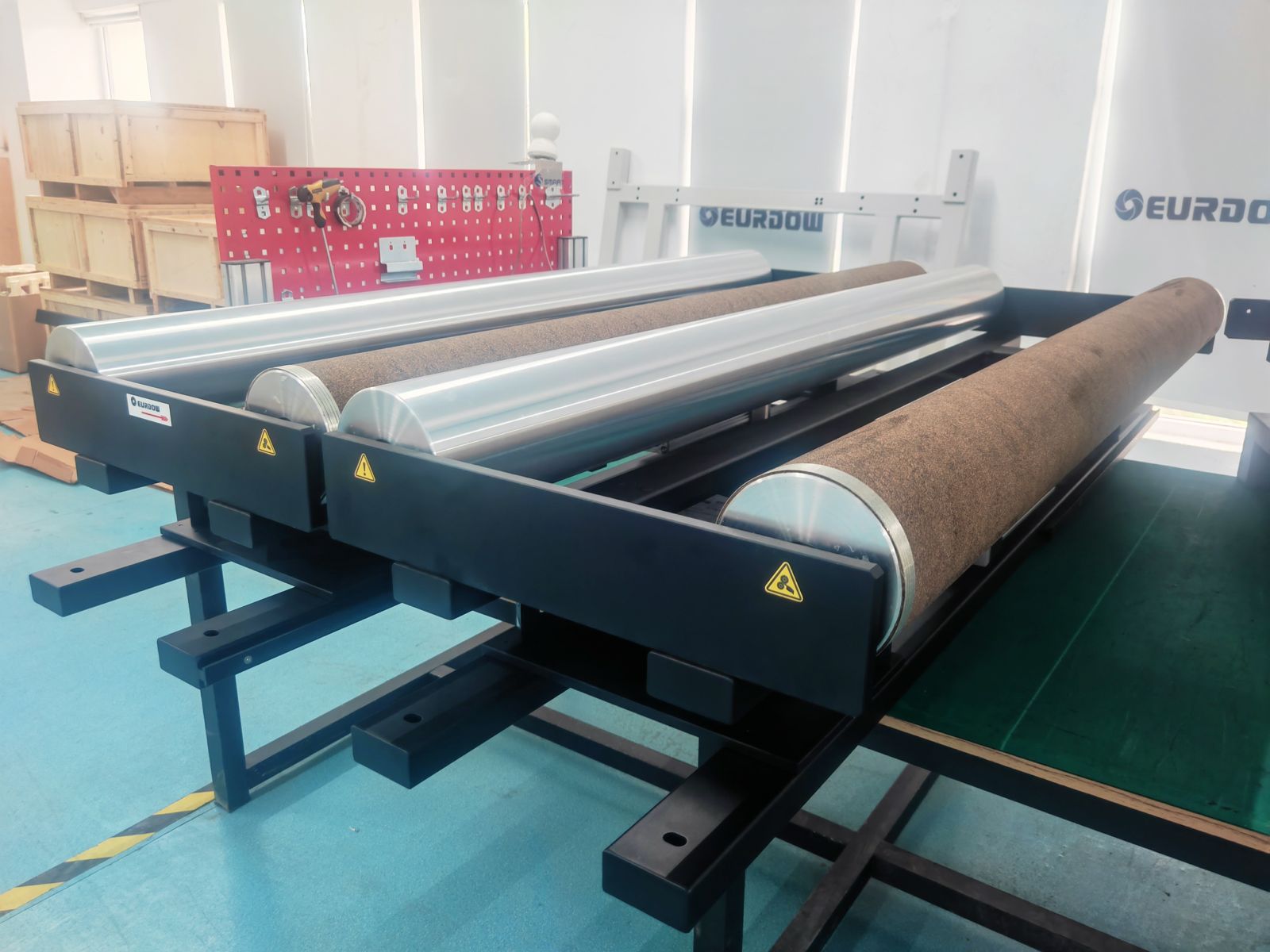

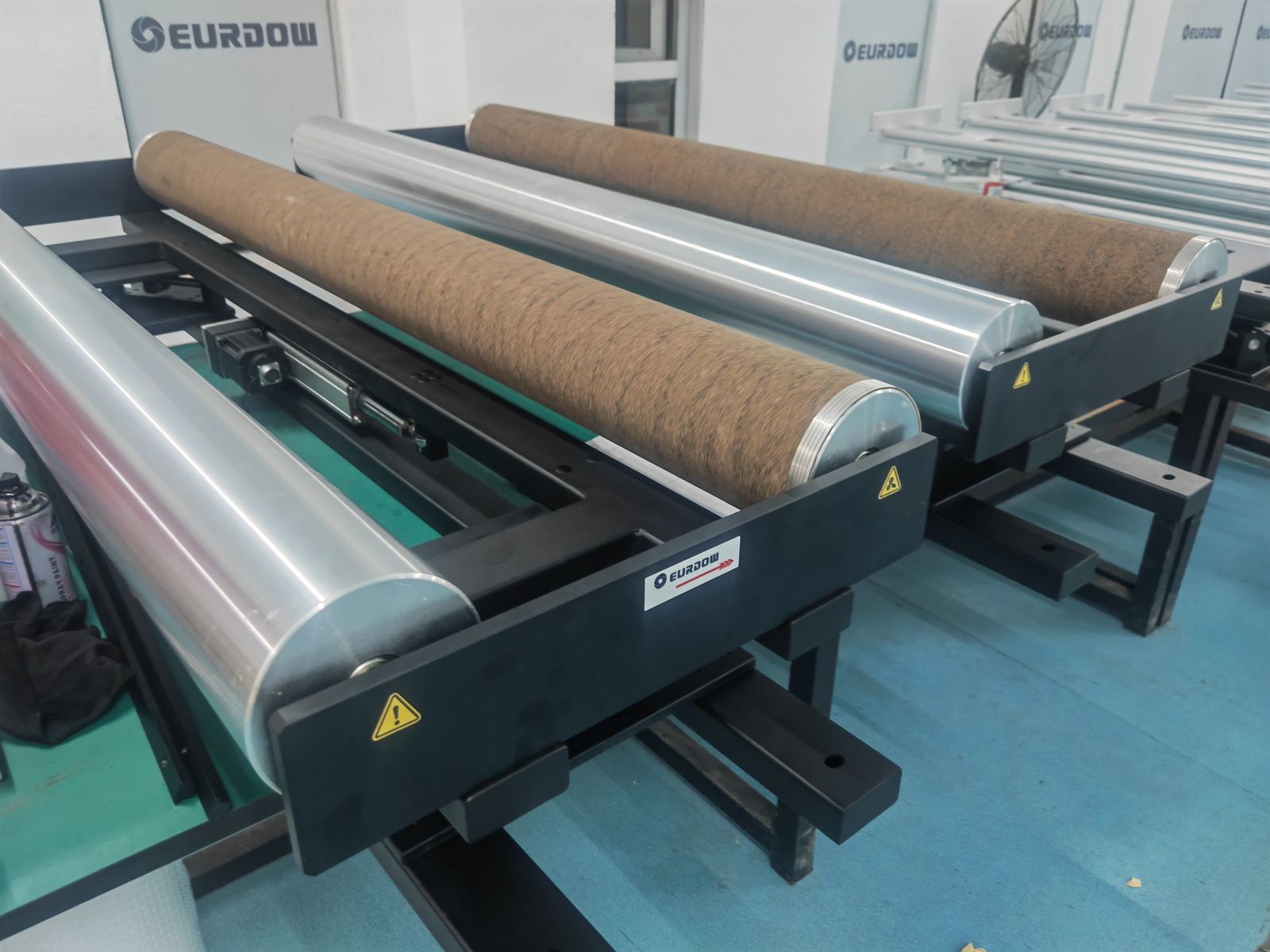

Recent split and special frames before shipment.
Small-width split frame
When the controller must sit away from the frame on narrow webs.

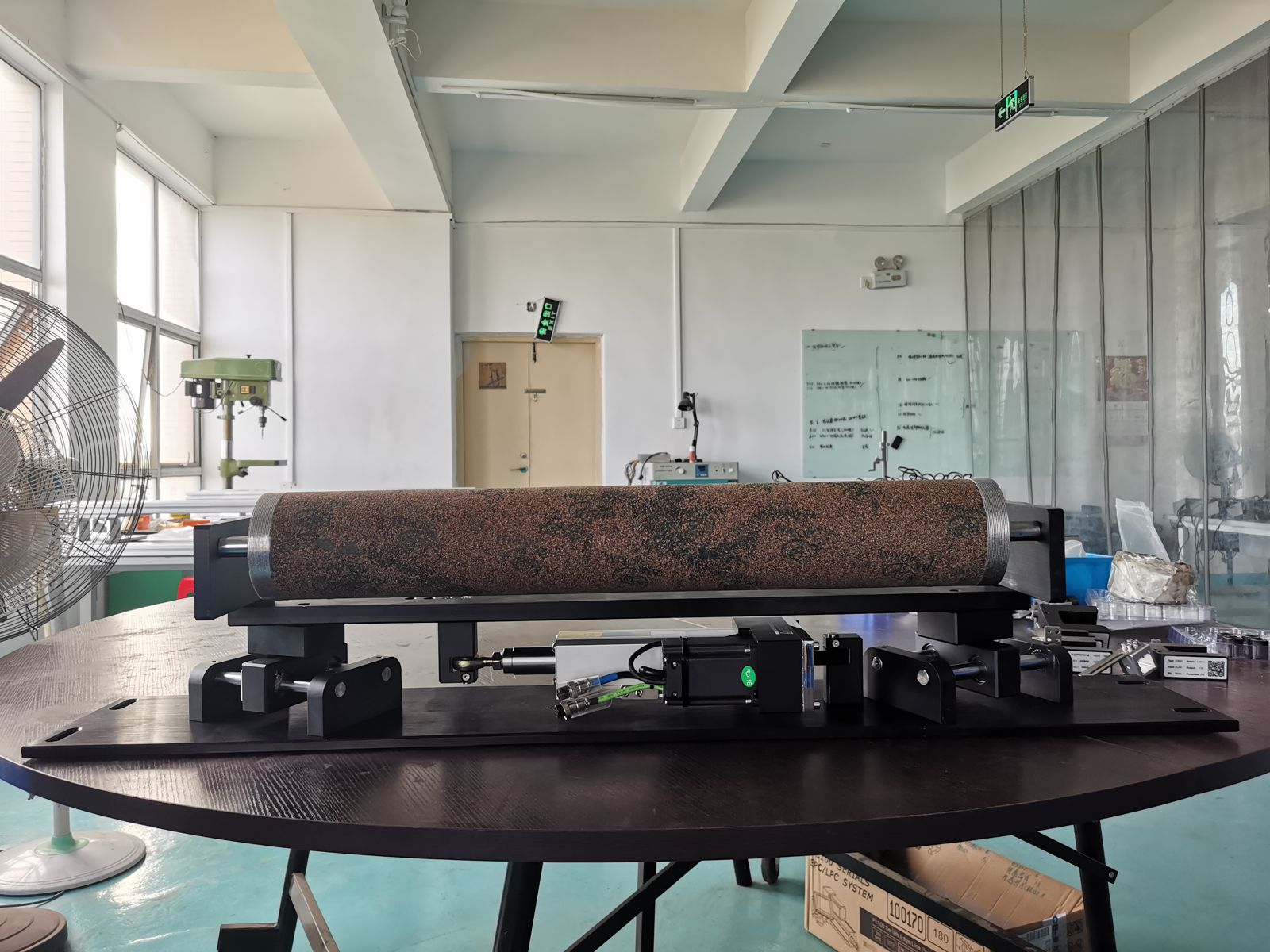

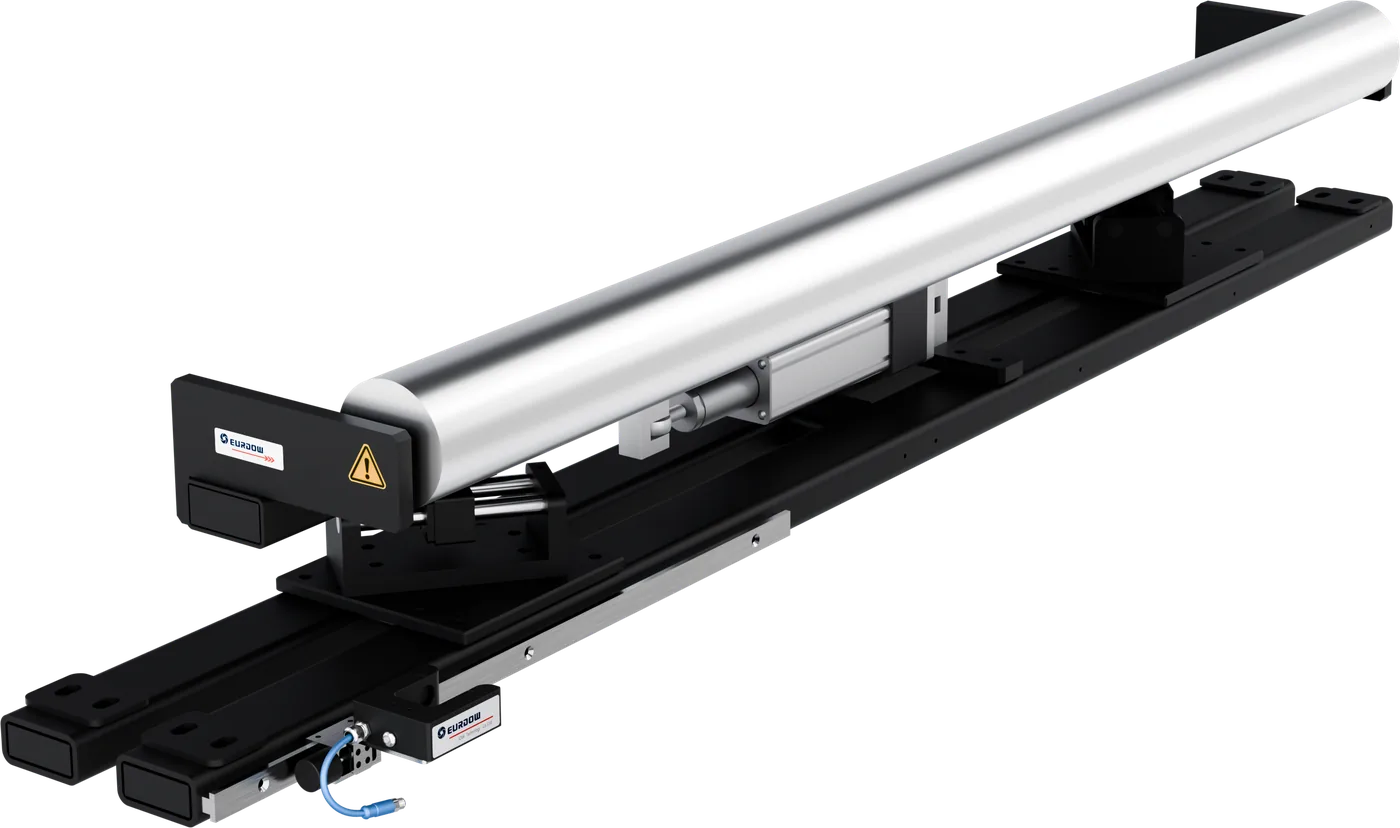

Single-roller frame
One steering roller where the web path leaves no room for two.

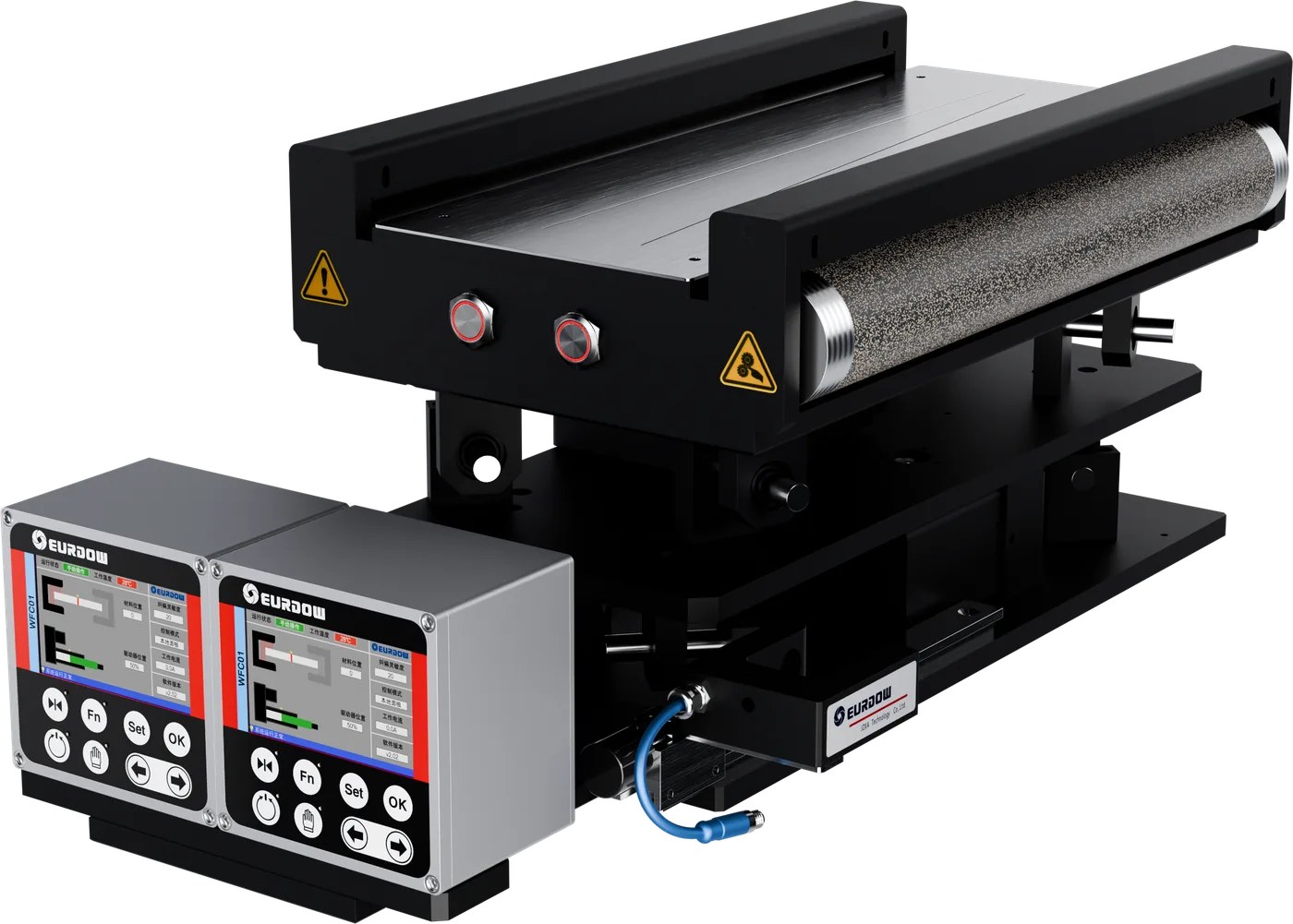

Bidirectional frame
450 mm frame fitted with two controllers.
What we need
To design your frame
- Maximum web width and material
- Required roller length and diameter
- Space available: length, width, height
- Web path in and out of the frame
- Line speed and web tension, if known
- Splice table: yes or no
We return a dimension drawing for approval before production. STEP and DWG files are available.
Have a machine layout?
Send a sketch or drawing of the space and the web path. We will propose a frame.
