WU2000 brushless actuators
A brushless DC servo motor with a built-in electronic brake and position feedback. Limits and centre position are set in the controller, so there are no mechanical limit switches to adjust or wear.
- Rated thrust
- 2500 N
- Speed
- 38 mm/s
- Travel
- ±25 to ±130 mm
- Motor
- Brushless DC servo
Models
Five strokes, one outline
All models share the same cross-section. Only lengths A (body) and B (pin-to-pin at centre position) change.
| Model | Thrust | Travel | Speed | A | B |
|---|---|---|---|---|---|
| WU2000-50 | 2500 N | ±25 mm | 38 mm/s | 216 mm | 360 mm |
| WU2000-100 | 2500 N | ±50 mm | 38 mm/s | 266 mm | 410 mm |
| WU2000-150 | 2500 N | ±75 mm | 38 mm/s | 316 mm | 460 mm |
| WU2000-200 | 2500 N | ±100 mm | 38 mm/s | 366 mm | 510 mm |
| WU2000-260 | 2500 N | ±130 mm | 38 mm/s | 426 mm | 570 mm |
Specifications
Common data
| Motor | Brushless DC servo |
|---|---|
| Brake | Built-in electronic brake |
| Feedback | Built-in position feedback, travel shown on the controller |
| Limits | Limit and centre positions set by parameter |
| Monitoring | Module temperature and motor current shown live |
| Power | Supplied and driven by the EURDOW controller |
| Connection | Rod ends Ø 12 H7; base 85 × 52 mm |

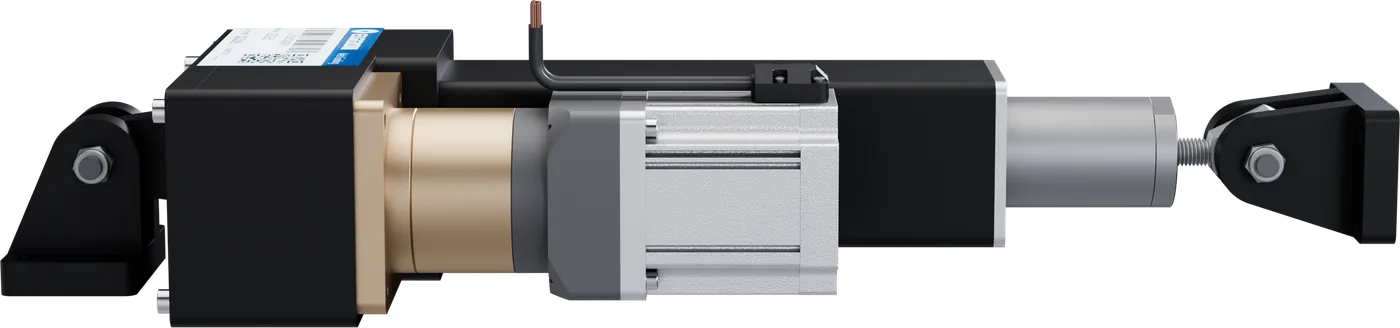

WU10000-150Larger actuator
A larger-frame actuator is also available. Contact us for its specifications and whether it suits your stand.
Choosing a stroke?
Tell us the maximum lateral run-out of your rolls and the weight to be moved.
