Precision web guiding for converting lines
EURDOW builds the complete closed loop in-house: edge sensor, controller, brushless actuator and guide frame. One supplier, one point of contact, from selection to after-sales.
Four components, one closed loop
Every EURDOW component is designed to work with the others. The sensor reads the web edge, the controller computes the error, the actuator moves the frame, and the frame steers the web back on line, every 2 ms.
Edge sensor
Ultrasonic, infrared or CCD line sensing, chosen for the material.
Controller
WFC01 colour display, 32-bit processor, RS485 with Modbus-RTU.
Actuator

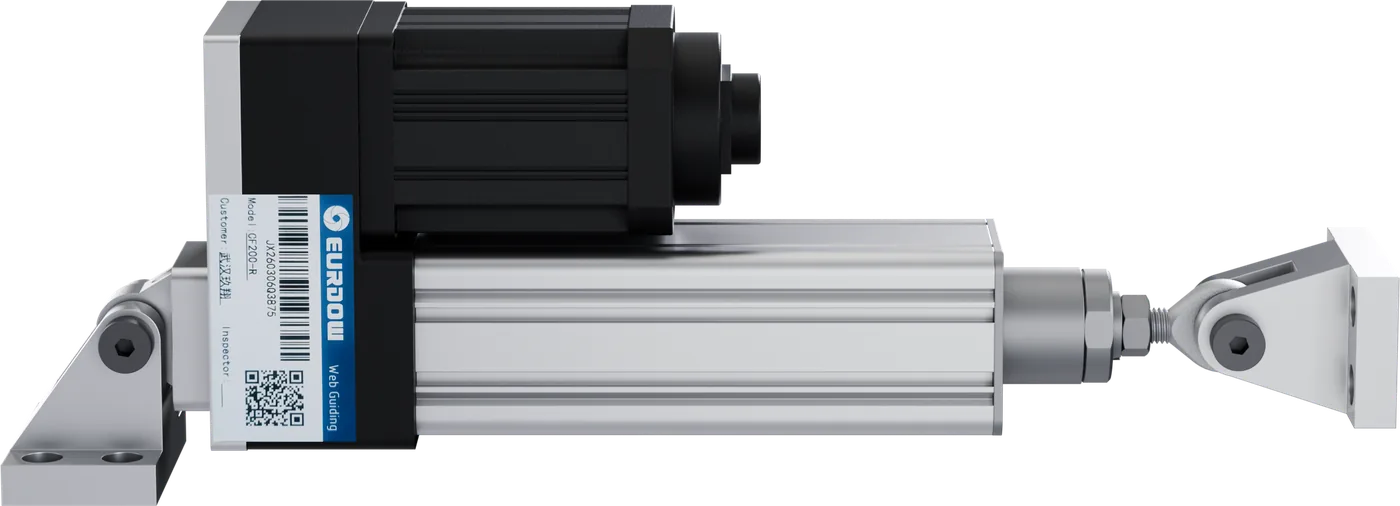

Brushless WU2000 series, 2500 N thrust, strokes from ±25 to ±130 mm.
Guide frame
All-in-one frames, frames with splice tables, or split frames built to order.
Buy the complete system, or the part you need
Most customers order a complete guide frame. Machine builders and maintenance teams also buy controllers, sensors and actuators separately to build into their own frames or to replace existing units.

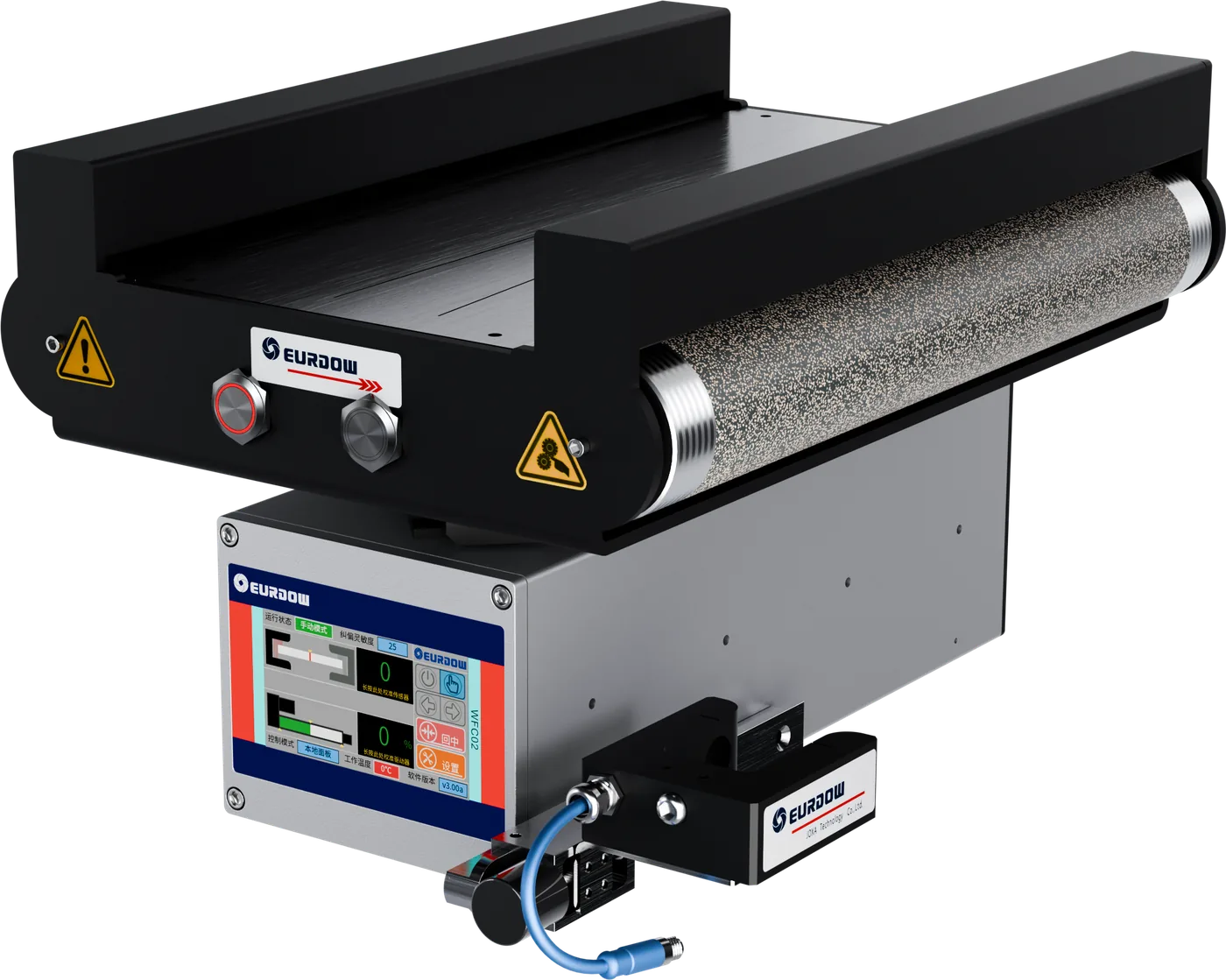

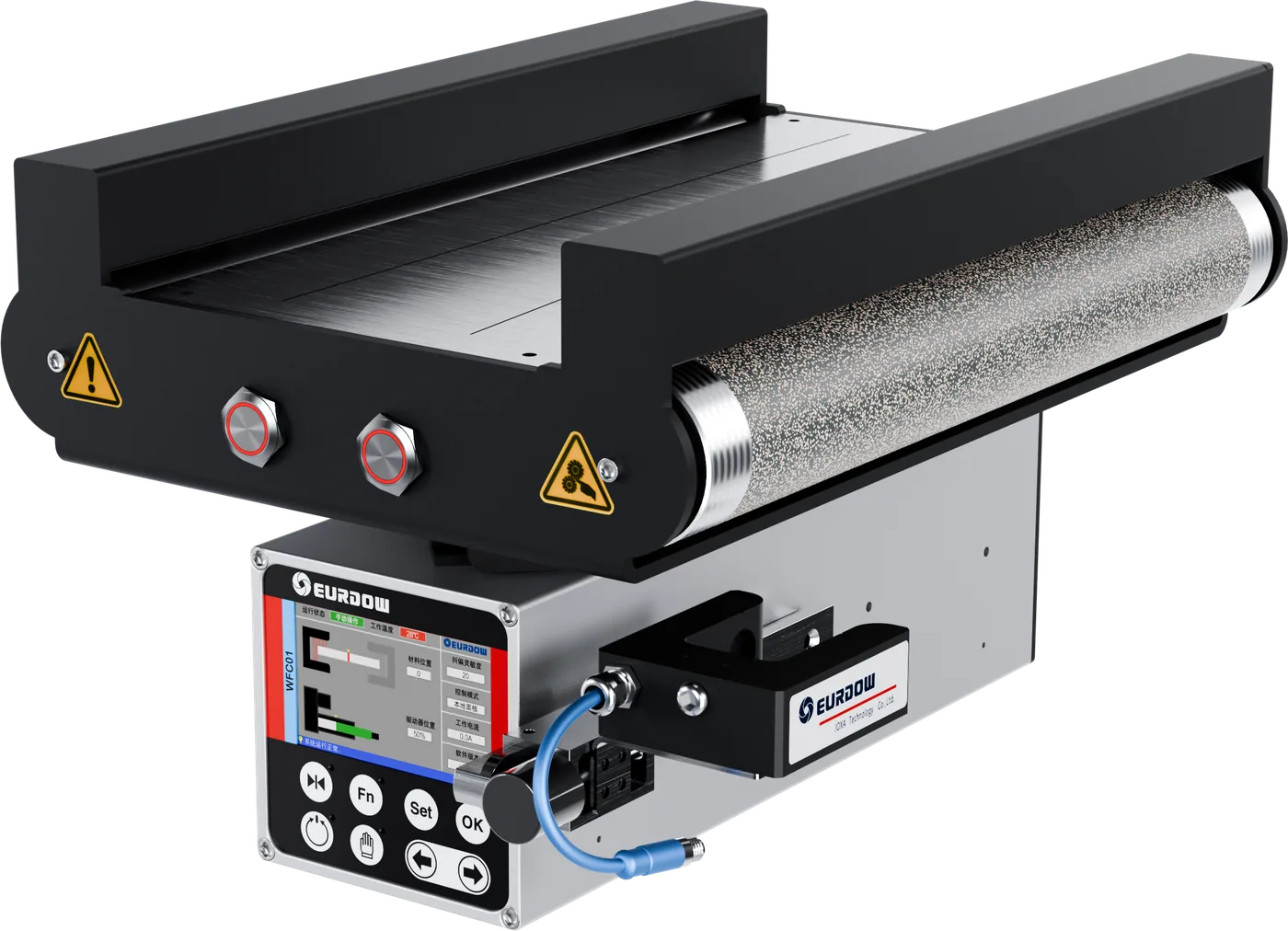

Frame, controller, sensor and actuator delivered as one unit, with optional splice table.

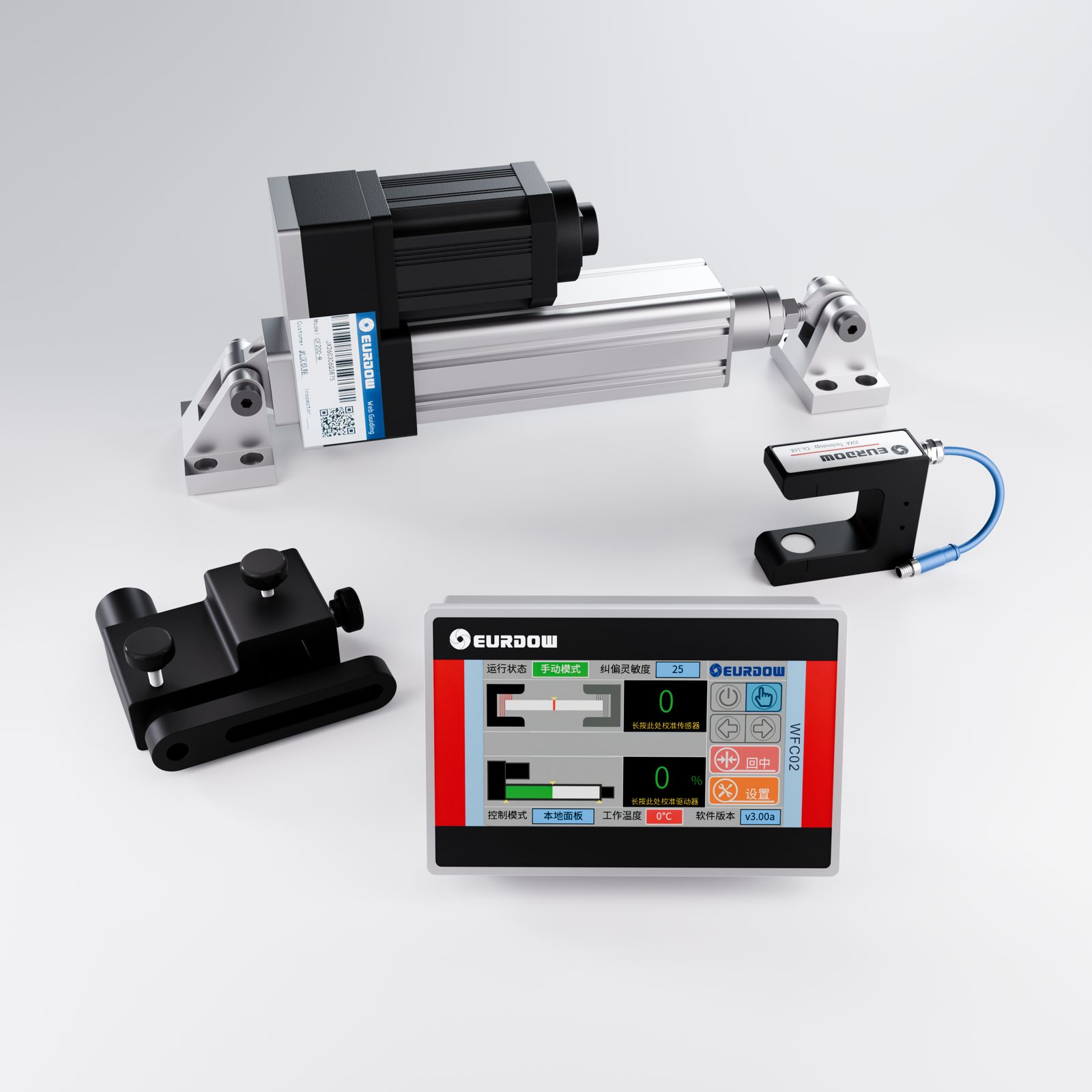

The actuator shifts the whole unwind or rewind stand to keep the roll edge in line.

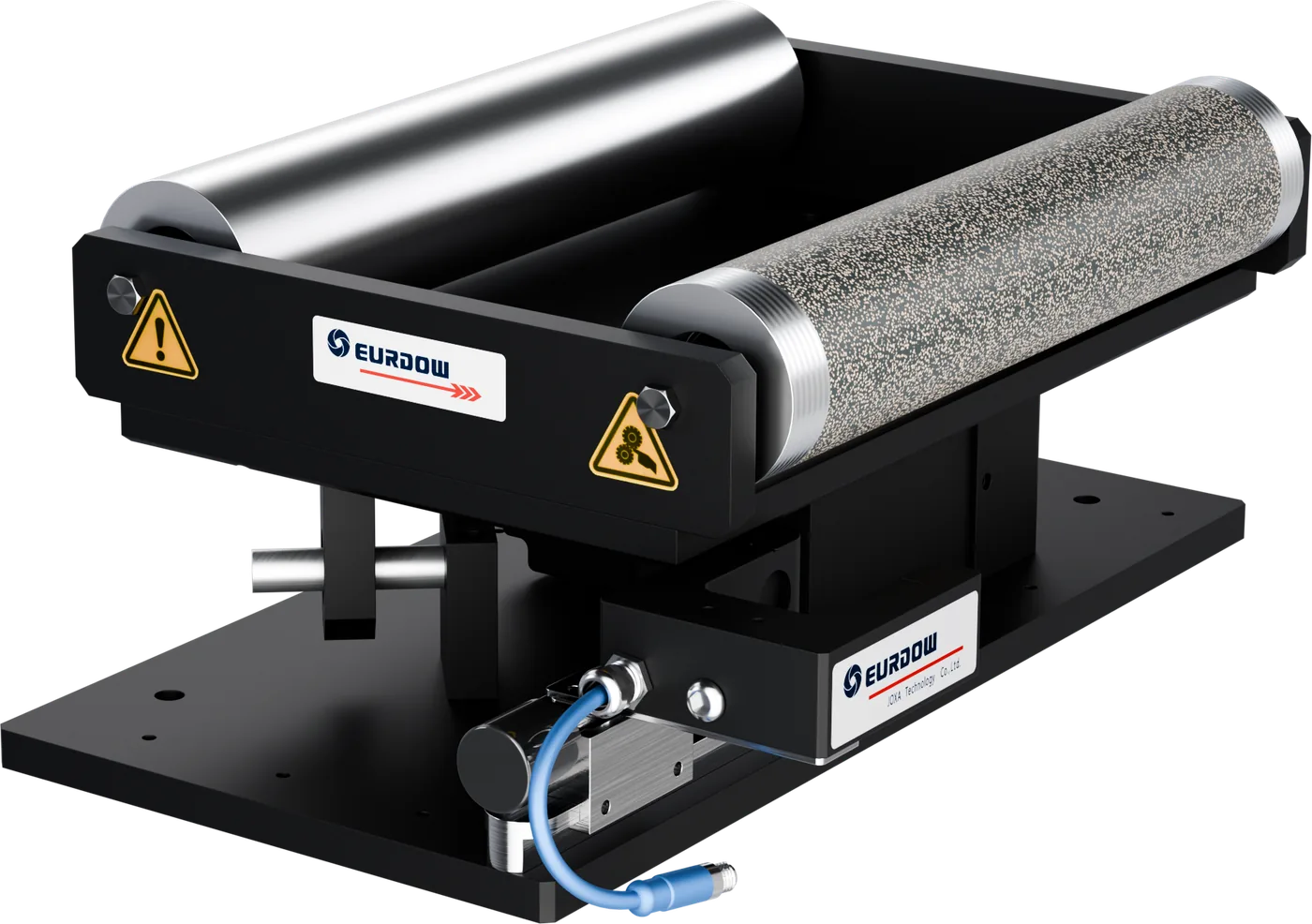

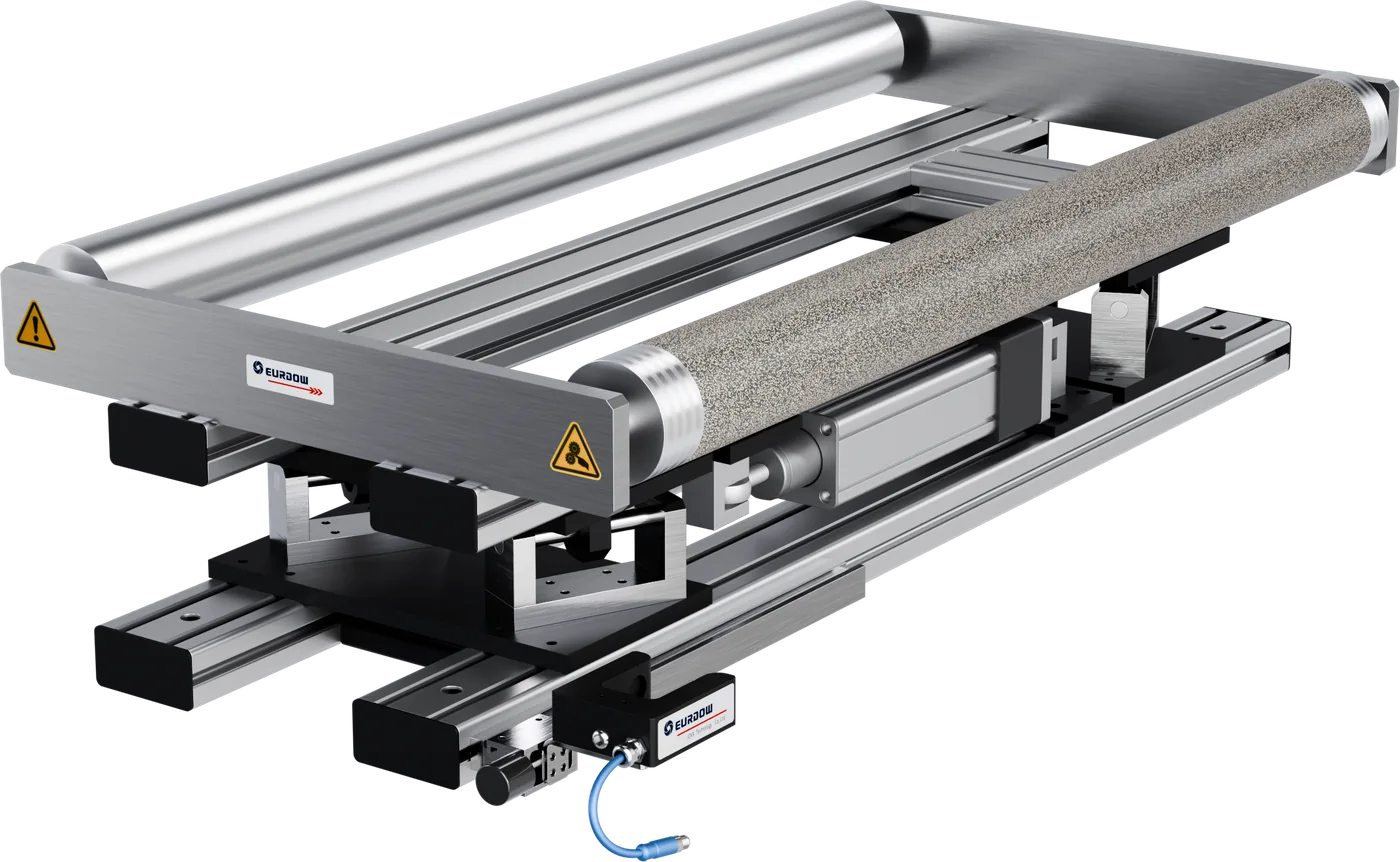

Separate frame and control unit for wide webs, built to your roller dimensions.

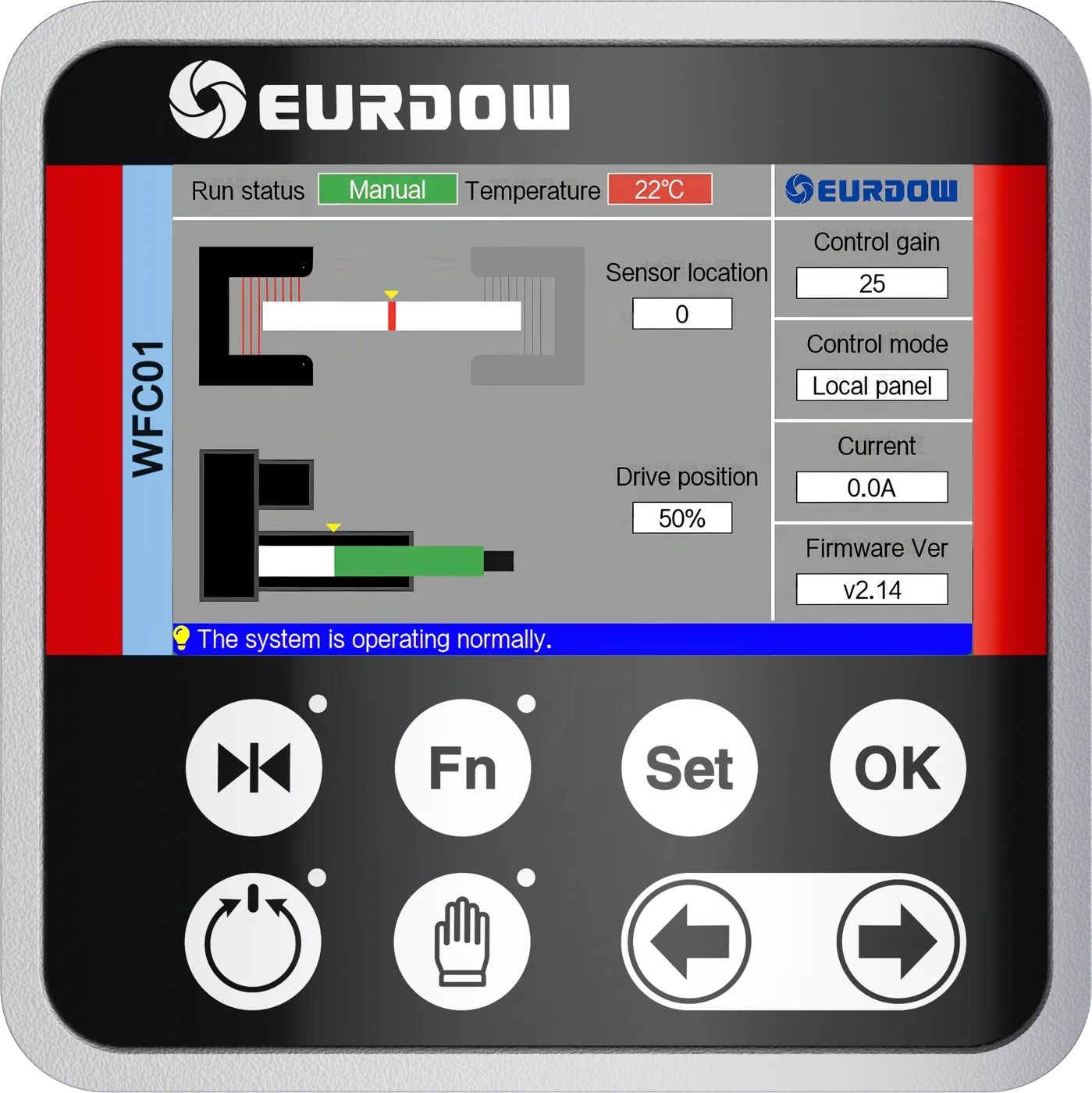

Colour display with keys, or colour touch screen. Edge, centre, line and oscillation modes.

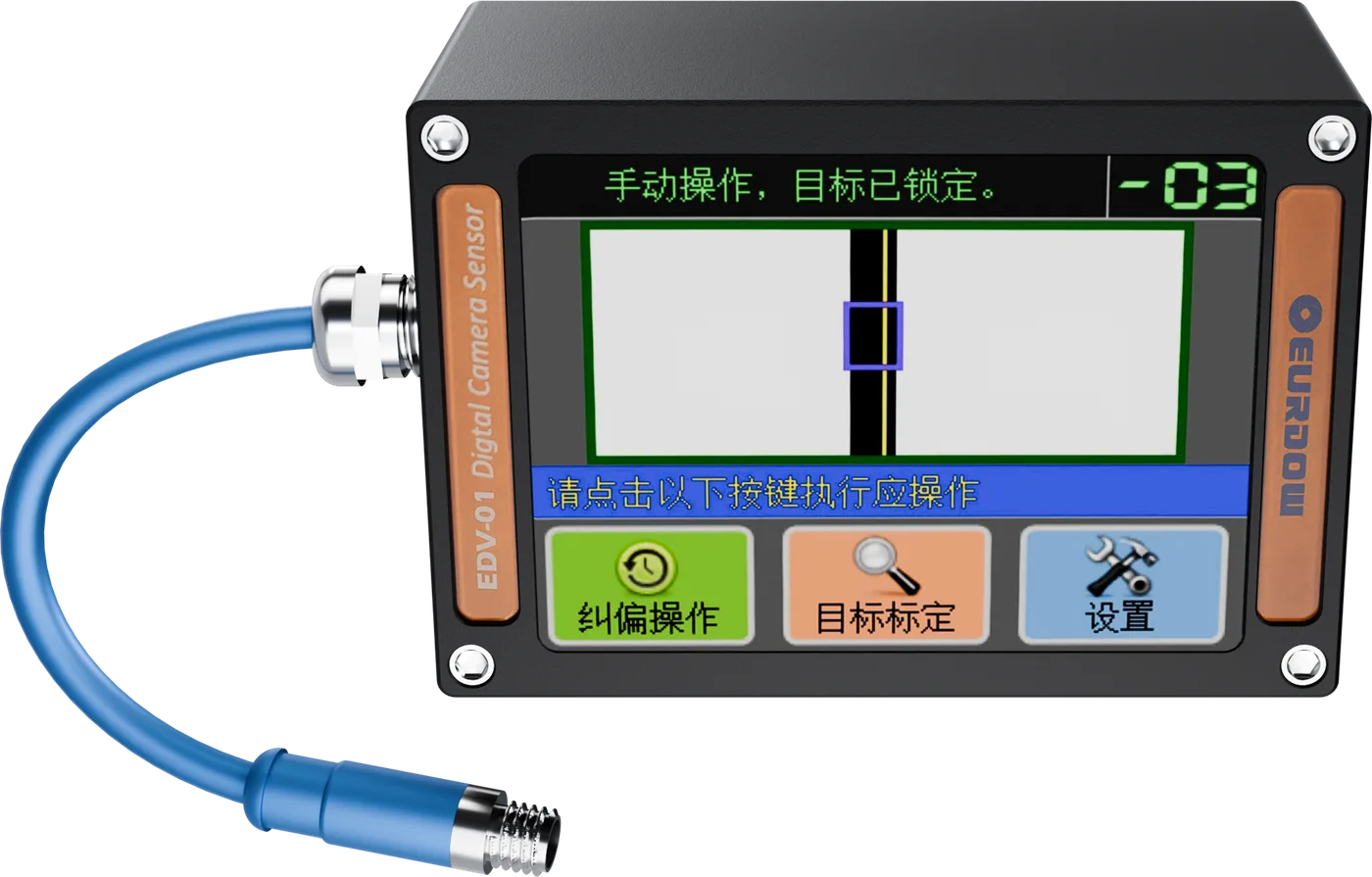

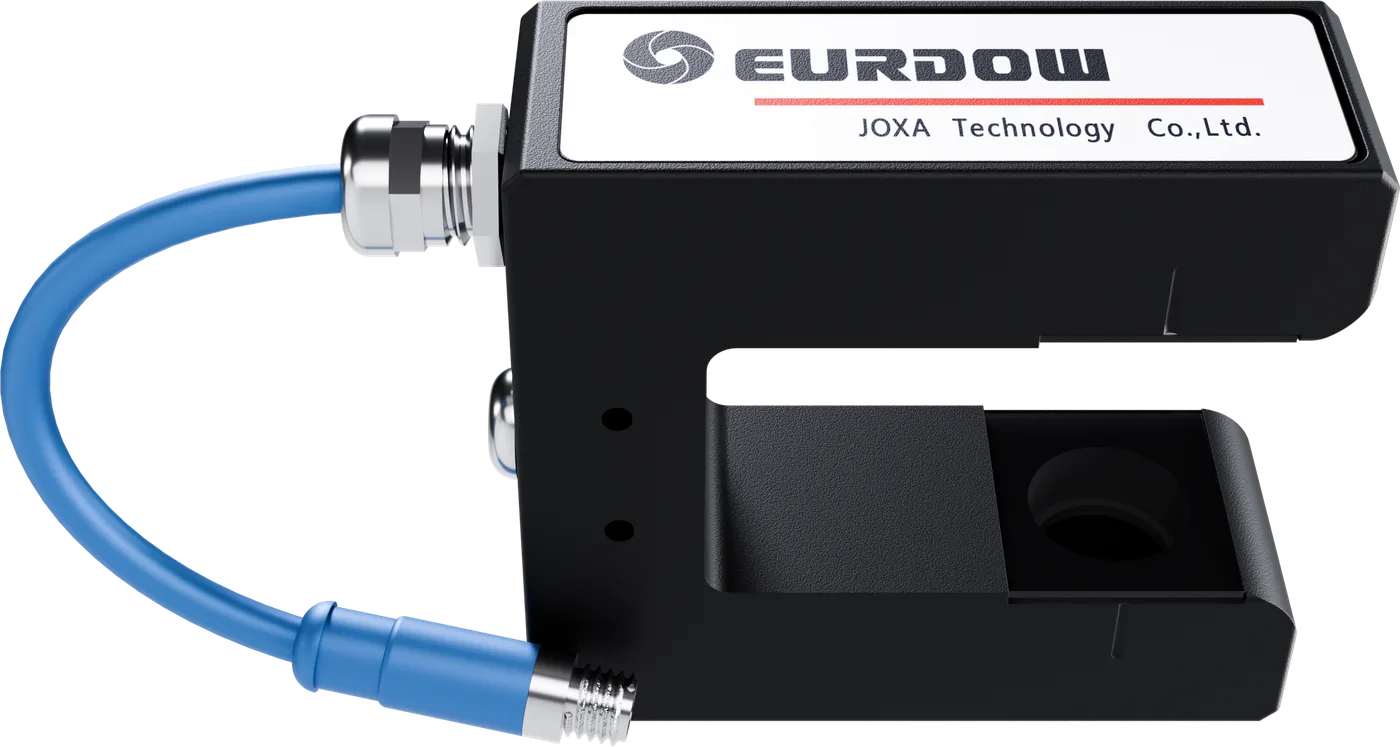

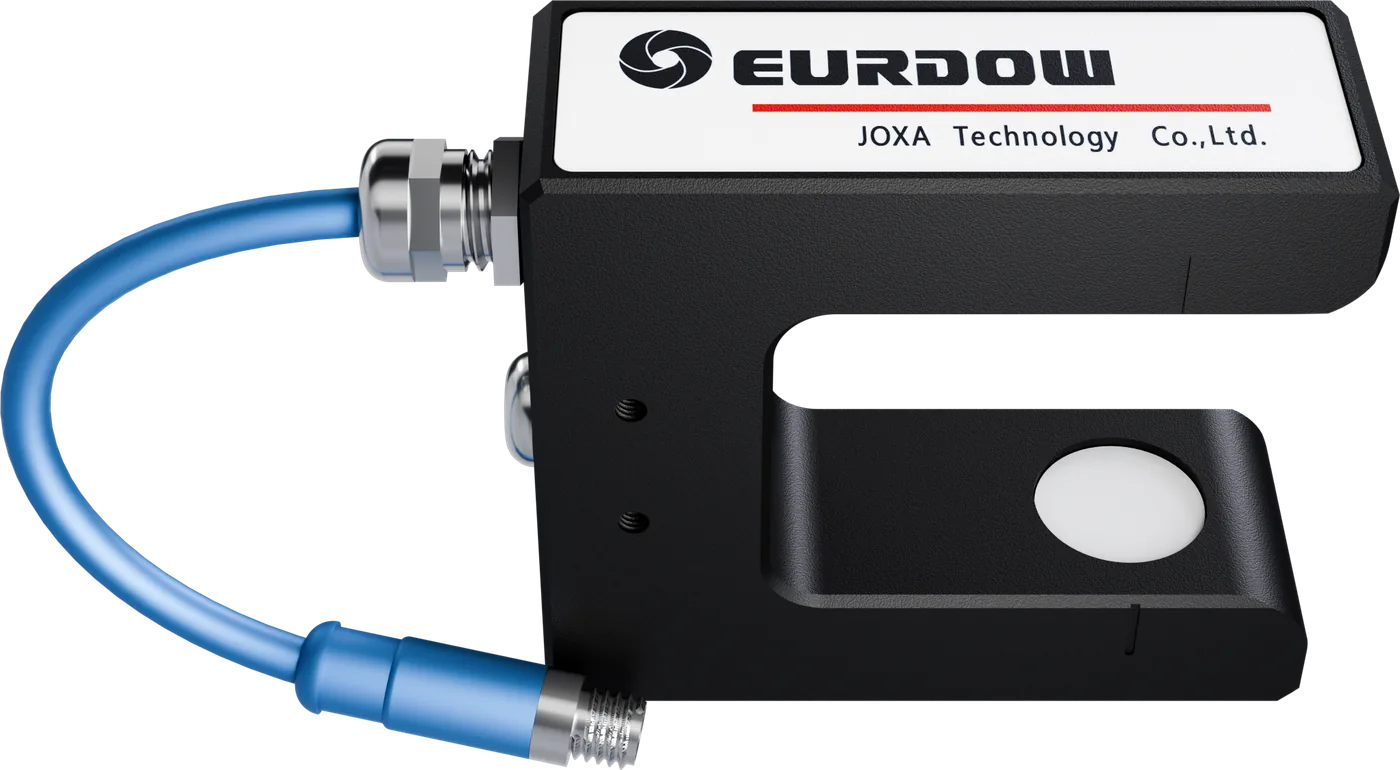

Ultrasonic, infrared and CCD line sensors. Choose by the material you run.
Brushless servo actuators with electronic limits and position feedback.
Start with the material
The sensor is chosen by what the web is made of. A sensor that cannot see the edge reliably limits the whole system, however good the rest is. Full selection guide →
| Material | Recommended | Why |
|---|---|---|
| Transparent film | EDS-02 | Infrared light passes through the web, so there is no usable edge signal. |
| Paper, opaque web | EDS-02 / EDR-02 | Both principles detect the edge reliably. |
| Highly reflective foil | EDS-02 | Specular reflection can blind an infrared sensor. |
| Textile, nonwoven, mesh | EDR-02 | Ultrasound passes through porous material. |
| Printed pattern | EDV-01 | Tracks the printed line, not the physical edge. |
Where EURDOW guides run
Wherever a continuous web is unwound, processed and rewound, its edge has to stay on line. These are the industries our systems serve today. Typical setups by industry →
Label converting
Flexo, digital, offset and intermittent rotary label presses, and finishing machines.
Unwind · between units · rewindFlexible packaging
Film and laminate webs on printing, laminating and slitting lines.
Unwind · before laminationPrinting
Edge or printed-line tracking ahead of print units and inline finishing.
Edge · printed lineLithium battery electrode
Coated electrode foil on coating, calendering and slitting lines.
Unwind · rewindFilm and foil
Aluminium and copper foil, film extrusion and slitting.
Ultrasonic sensingNonwovens
Porous webs, sensed with infrared rather than ultrasound.
Infrared sensingTissue and paper
Parent-roll unwinding and tissue converting lines.
Wide-web split framesMedical and hygiene
Tapes, dressings and hygiene materials on converting lines.
Unwind · rewindBuilt into label presses by 15 machine builders
Chinese label-press manufacturers fit EURDOW web guides to their flexo, digital, offset and intermittent rotary machines, and to finishing and inspection equipment. Through the machines they export, EURDOW systems run on label lines around the world.

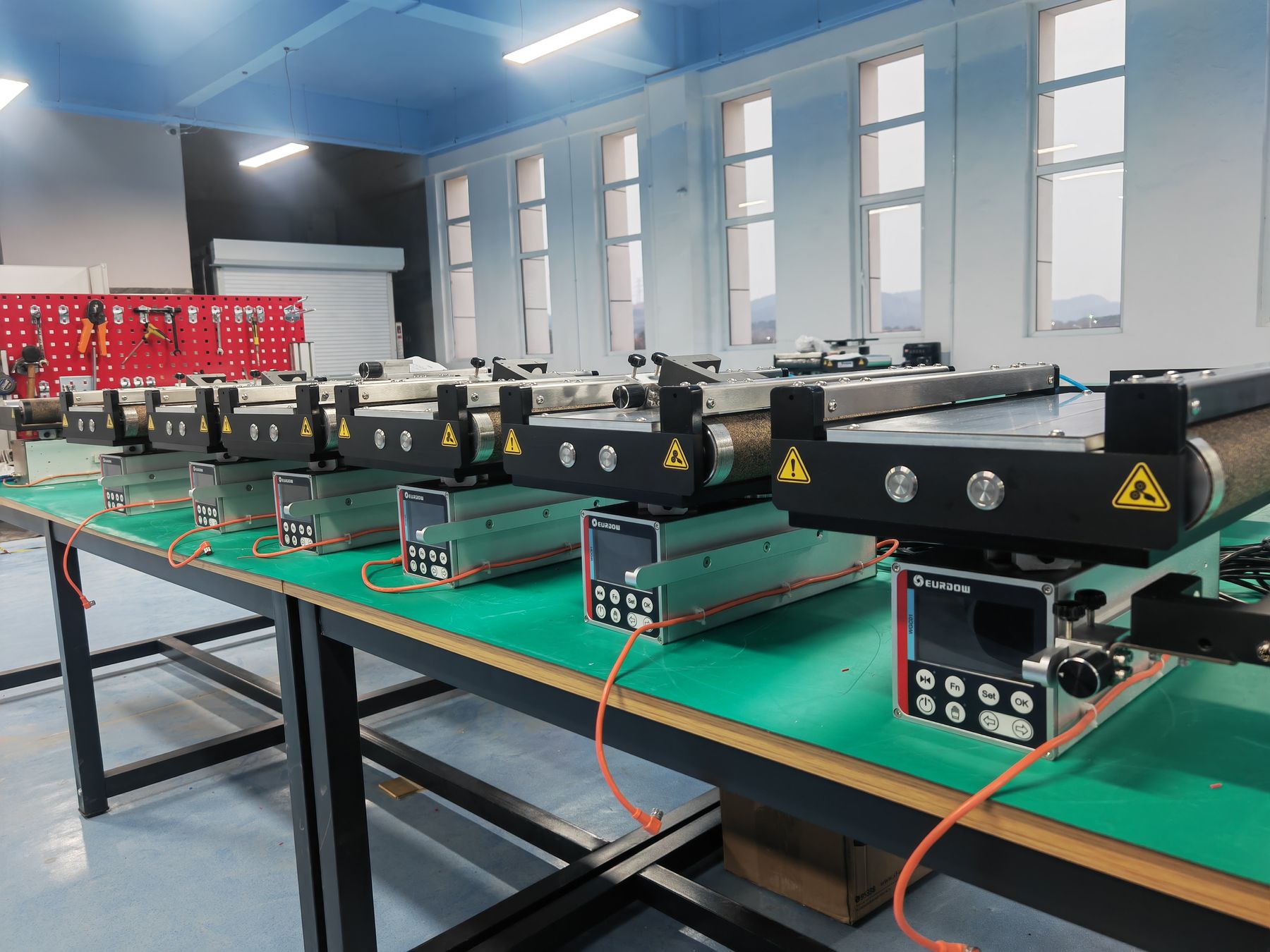

Designed and assembled in our own factory

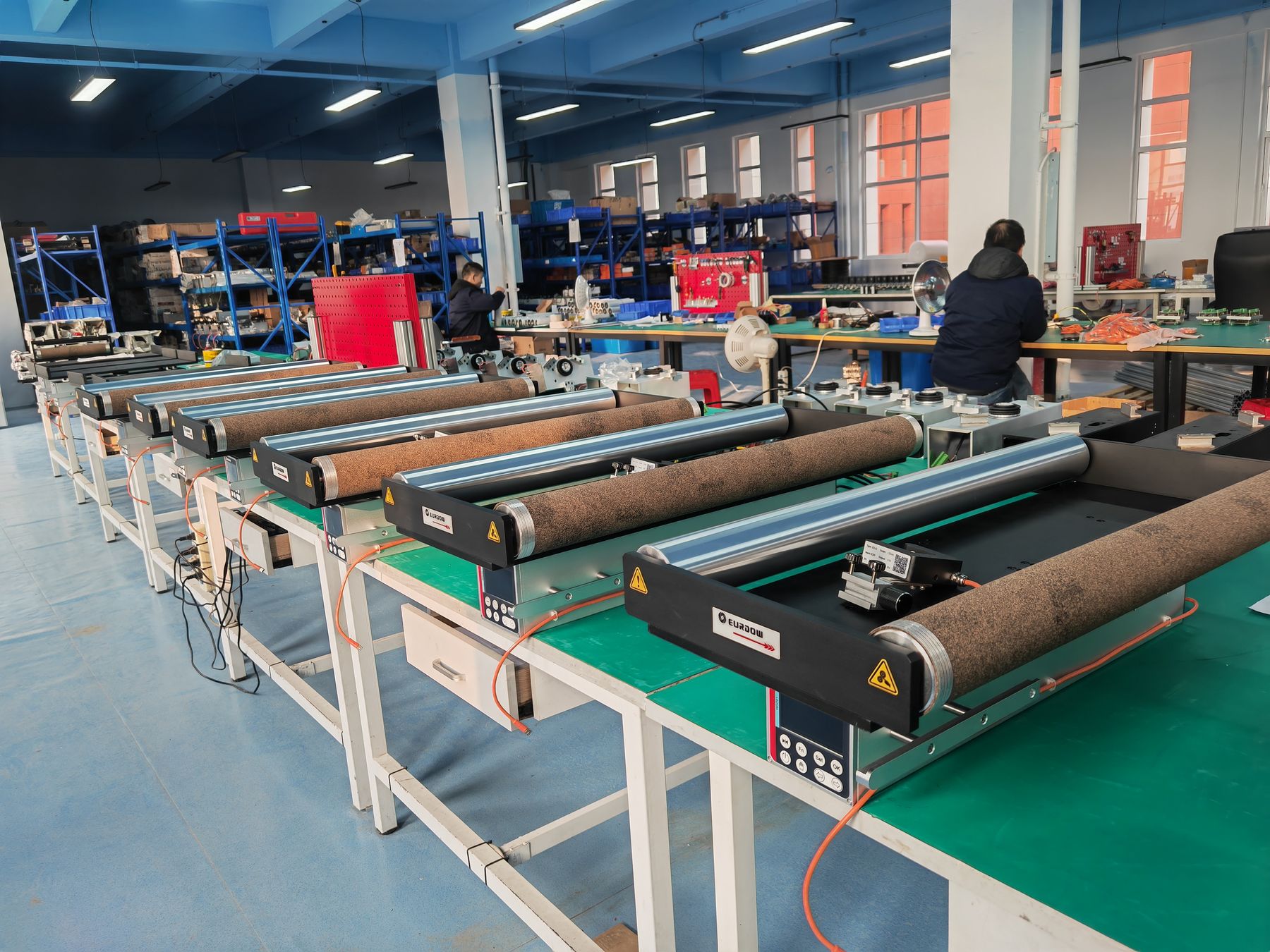

EURDOW is the web guiding brand of Wuhan Joxa Technology Co., Ltd. Our engineers develop the control electronics and software, and systems are assembled and tested on our own production floor in Wuhan before it ships. More about us →
- Founded
- 2016
- Own factory
- 3,500 m²
- Location
- Wuhan, China
- IP
- 3 patents · 5 software copyrights
- Recognition
- National High-Tech Enterprise
- Since
- 2009 in web guiding
